Printed Glass Partitions and Manifestation for Dubai Offices
Print brand patterns and safety marking directly onto office partition glass instead of applying frosted film. How it works, and when film is still better.
Glass manifestation is the visible marking on large clear glass panes, such as office partitions, that stops people walking into them: bands, dots or a pattern at set heights. A printed partition carries that marking, the privacy pattern and the brand in one print cured on the glass, instead of frosted film applied afterwards.
A clear glass partition does two things badly at once. It shows the whole meeting room to the corridor, and it is invisible enough that people walk into it. The usual fix in Dubai is film: frosted or printed vinyl applied to the surface, priced by the square metre, quick to install and quick to quote.

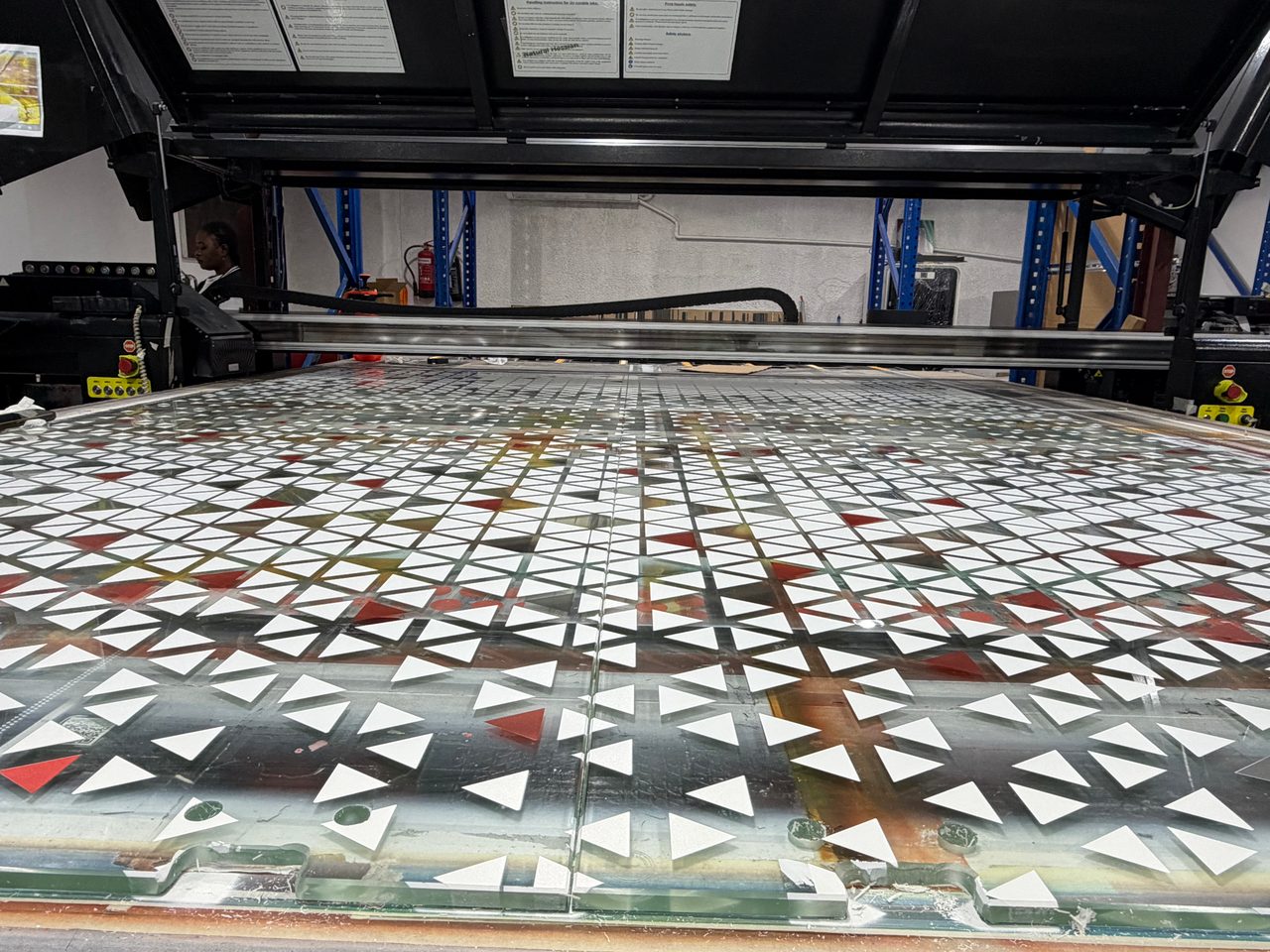

Film works. In our experience it is also a finish that often gets replaced within a few years, because film sits on the glass as a separate sheet with an edge, and an edge can lift, bubble or be picked at. The alternative is to print the pattern onto the glass itself. UV ink cures under UV light essentially the moment it is laid down, and stays on the prepared surface as a hard layer with no carrier sheet and no edge. We print each panel flat at our studio in Al Quoz, Dubai, before the glass goes into the frames.
This page is written for the fit-out contractor and the workplace designer who put the partition package together. It covers when printed glass is worth specifying, and when it is not. Whether we can print your glass, the files we need, the no-minimum-order policy and the full quote list are on our glass printing in Dubai service page.
Glass is printed after it is cut, drilled and toughened
Toughened glass cannot be cut or drilled once it leaves the furnace: it shatters. So the panel is finished first: cut to size, edges polished, any holes for patch fittings or hinges drilled, then toughened. Printing is the last step. UV ink is cured by light rather than baked, so printing does not affect the toughening.
That order has a practical consequence: a printed panel cannot be trimmed to fit. Measure the openings on site once the frames are up, not off the drawing. Panel size is confirmed per job, so send the panel schedule before a pattern is designed around tall panes. Our large-format glass printing guide for specifiers sets out the processing rule in full, along with the general comparison of print and film and what applies to sun-exposed or external glass.
White ink is what turns a pattern into privacy
Colour ink on clear glass is translucent. A pattern printed in colour alone reads as a tint: you still see straight through it, which is fine for decoration and useless for privacy. Opacity comes from white ink, printed as its own layer beneath the colour on a face print.
Because white is a printed layer rather than a property of the material, its density is a variable. The same artwork can be dense at seated eye height, where people would rather not be watched, and thin to nothing towards the ceiling so the room still reads as part of the floor instead of a sealed box. Frosted film gives one uniform value across the whole sheet; printing gives a gradient. A printed sliding door entrance in Dubai uses that variable the other way up: the fixed panels either side are solid towards the floor and fade out as they rise. That white layer is an extra pass and it shows up in the quote. What drives a UV printing quote explains why.
Second surface printing puts the ink behind the glass
On a partition you can usually choose which face carries the ink. Printing the second surface (the back face, so the graphic is seen through the glass) puts a toughened pane between the ink and everything that would damage it: chair backs, cleaning trolleys, glass cleaner, fingernails.
Two things change in reverse printing. The artwork is mirrored, and the ink order flips, with white laid last over the colour because the image is viewed from behind. Adhesion still depends on how the glass is prepared beforehand: the panel is cleaned and, depending on the glass, primed. Ink adhesion and pre-treatment goes into that in detail, and how UV printing on glass works explains both faces and the white layer in plain English.
Safety marking on clear glazing is a real requirement
Large clear panes have to be visibly marked so nobody walks into them. That requirement is real and it is not optional on the panes it applies to. As a reference point, the Dubai Universal Design Code, at the time of writing, describes two horizontal bands of contrasting marking on clear glazing: one between 850 and 1000 mm above the floor and one between 1400 and 1600 mm. Treat those figures as a starting point, not as the requirement for your building. The marking heights, band positions and pattern density that apply are set by the code the project is built to and by the authority signing the fit-out off, and your project’s consultant confirms them in writing, not a printer. Sun Studio prints what the approved drawing specifies; we do not certify that a design complies.
Partition contractors usually supply manifestation as frosted film, as dots or bands, or as sandblasted or acid-etched glass. Direct printing is the option that carries colour, a brand pattern and the marking in one printed layer.
The useful part is that one printed pattern can carry the branding and satisfy the marking at the same time, provided the consultant has approved its density and its position on the pane. For the related question of tactile and Braille requirements on doors and wayfinding, see Braille and wayfinding signage requirements. We make those signs as well: see Braille and tactile signage in Dubai.
Three offices we printed rather than filmed
The meeting room at PRO TECHnology, Sun Studio's parent group, is six glass panels, each 2.4 metres tall and a metre wide, running the full length of the wall. The brand pattern is printed onto the glass, not applied to it. Meeting room glass is doing two jobs at once: separation without sealing the room off from the floor, and brand identity without a logo stuck on every surface.
For a confidential corporate client, the managing director’s office was five architectural panels, each three metres tall and a metre wide, printed with a geometric pattern in layered colour. On a run like that the pattern crosses panel joints, so the artwork is split per panel with the frame widths allowed for, and the panels are numbered to be glazed in the order they were printed.
At the DreamDraw offices in Dubai the same approach went onto the entrance doors and a feature wall. The door glass is a deep near-black green, so white was printed under the colour to keep the gold logos legible. A door is handled all day, and a film edge there is the first thing to lift.
When film is the right answer and printing is not
A print on glass is not made to be removed or changed. That is the point of it, and it is also the reason not to specify it in three common situations.
If you are a tenant who rebrands or repaints every couple of years, the pattern outlives the brand. If the glass is leased and has to be handed back unmarked, printing it becomes a dilapidations problem. And if the partitions are already installed, direct printing needs the panel flat on a printer bed, which means de-glazing and re-glazing every pane. On an occupied office floor that is usually more disruption and more risk than the finish is worth.
Film is the better answer in all three cases. It is applied in situ, it comes off, and it is quick.
What to send for a quote
The basic list (panel sizes, thickness, glass type, quantity, artwork and dates) is on the glass printing service page linked near the top of this article. An office partition package adds four things:
- If the panes are clear, the manifestation requirement in writing from your consultant or the authority.
- Whether you want privacy graduation, and roughly at what heights it should be dense and where it should clear.
- Which face is the print face, and which side of the partition is the primary view.
- Whether the glass is still to be supplied and glazed, or is already installed.
Common questions
Can you print onto glass partitions that are already installed?
What height does the safety marking on clear glass have to be?
How does printed glass compare with frosted film for durability?
Can one pattern give privacy at seated height and stay clear higher up?
What does a printed partition look like from the other side?
Send the panel schedule and the artwork to info@sunstudio.ae or call +971 4 346 7422. If your project is in the UAE and you would rather see printed glass in a room before committing to it, ask us and we will arrange a visit to a printed meeting room.
