What Is UV Printing? How It Works, What It Prints On, and How Long It Lasts
UV printing cures ink with ultraviolet light the instant it lands, so it prints direct onto glass, metal, wood and acrylic. How it works, from a Dubai studio.
UV printing is a digital printing process in which ultraviolet light cures the ink at the moment it lands on the surface. Rather than drying by evaporation or soaking into paper, the ink hardens into a solid film almost instantly. That one difference is what allows a printer to lay a full-colour image directly onto glass, metal, wood, acrylic, leather, ceramic, stone, fabric or a finished wall.
It is the technology behind most of what people in the UAE mean when they say “printed direct” — a logo on a perfume bottle with no label, a mural on an office wall with no wallpaper, a photograph on a museum panel with no laminate over it. This guide explains how it works, what it can and cannot do, and what actually decides whether the print survives.
What is UV printing, in plain terms?
UV printing is inkjet printing with a different kind of ink and a lamp attached to the printhead. The head passes over the object and lays down microscopic droplets of UV-curable ink. A UV lamp travels with it, and as the light hits each droplet the ink undergoes photopolymerisation — the liquid cross-links into a solid polymer. The ink does not sit wet and slowly dry. It is liquid, then it is a cured film, and the object can be handled immediately.
Most conventional printing relies on the surface absorbing the ink or on solvent evaporating out of it, which is why paper and card dominate it, and why non-porous work has historically meant screen or pad printing with their tooling and colour limits. UV printing needs no absorbency at all, because the ink is not absorbed — it is set in place on top of whatever it lands on. What UV inkjet changed is not that glass and metal could be printed, but that they could be printed in full colour, digitally, with no tooling and no drying time.
How does UV printing work, step by step?
In a production studio the sequence is the same on every job, whether it is one sample or a thousand pieces:
- The surface is cleaned and, where the material needs it, pre-treated or primed so the cured ink has something to hold on to
- The object is positioned and, for anything that is not a flat sheet, held in a jig so every piece sits in exactly the same place
- The printhead lays the colours, and on dark or transparent materials a layer of white ink underneath them so the colours read true
- A UV lamp cures each pass within a fraction of a second of the ink landing
- Where the design calls for it, further passes build the ink into a raised texture, or a clear varnish is laid over the top for gloss, matt or selective shine
What materials can you UV print on?
The honest general answer is: most rigid and many flexible materials, provided the surface is clean, reasonably stable and prepared correctly for what it is. In this studio the routine list runs to glass, acrylic, aluminium and other metals, wood and MDF, ceramic and tile, natural stone and marble, leather, textiles including velvet, several plastics, wax, and finished plaster walls.
That list has real edges. Some plastics — polypropylene, polyethylene and silicone among them — have a surface energy so low that ink beads rather than wets out, and they need flame or plasma treatment or a primer before they will hold anything. Others, including PET, polycarbonate and ABS, are cooperative and print well once properly cleaned. Very flexible materials can crack a cured film if they are bent hard after printing. Anything oily, dusty or freshly coated will fail regardless of the machine. Which surfaces need what is covered in detail in our guide to ink adhesion and pre-treatment.
What UV printing does that other processes cannot
Four capabilities separate it from screen, pad and sublimation printing, and they are the reason most direct-to-object work in the Gulf has moved to it.
- No tooling. There are no screens, plates or dies to make. Changing the artwork means opening a different file, so one piece runs the same way a thousand do and there is no minimum order to justify setup
- White ink. Screens can print white too, but a digital press places white selectively underneath the colours from the same file — no extra screen, no extra setup, just a layer in the build. It is what carries full colour on clear glass, dark metal and black acrylic, and it is an extra layer of ink, which is why it shows up in a quote

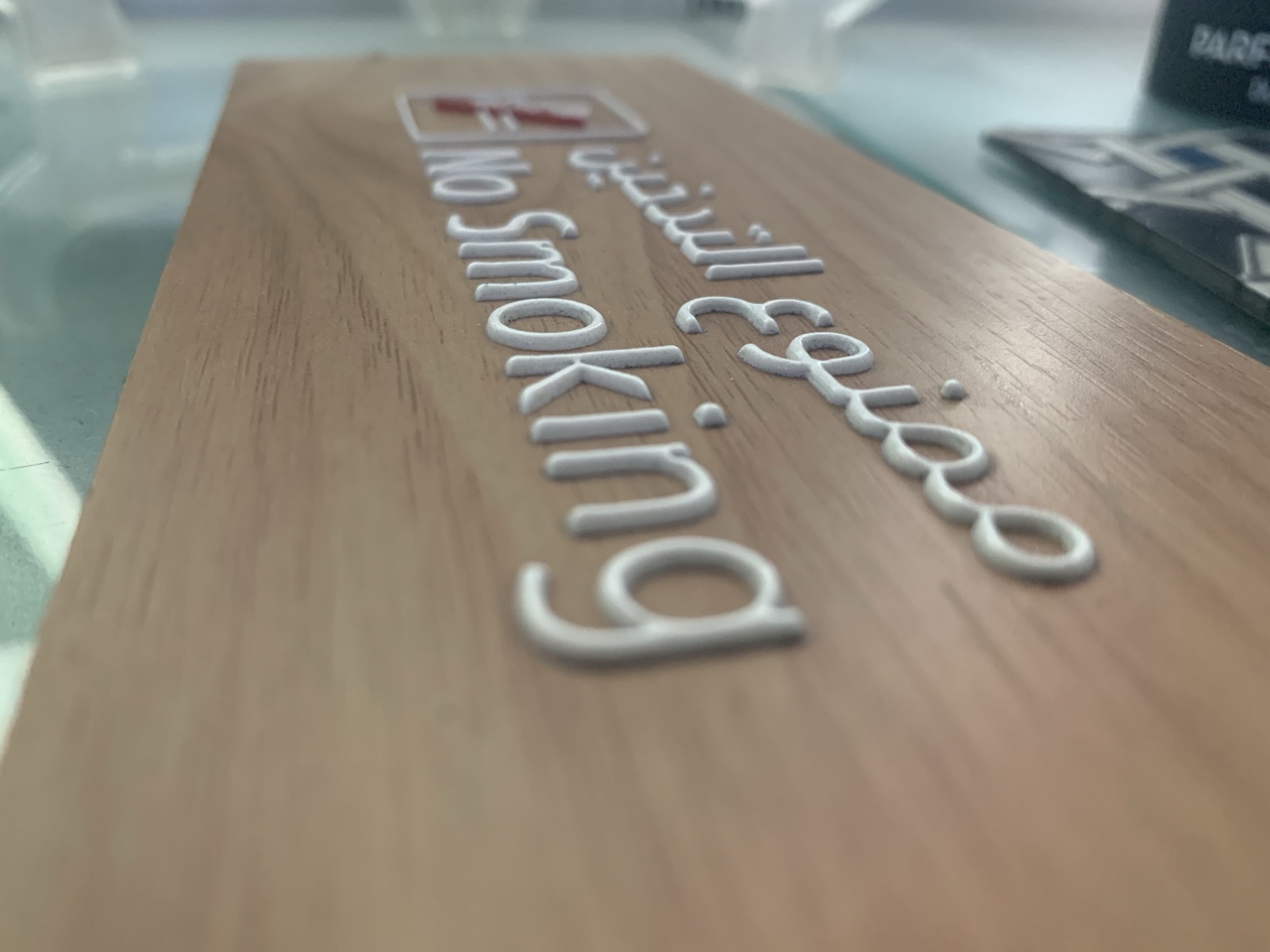

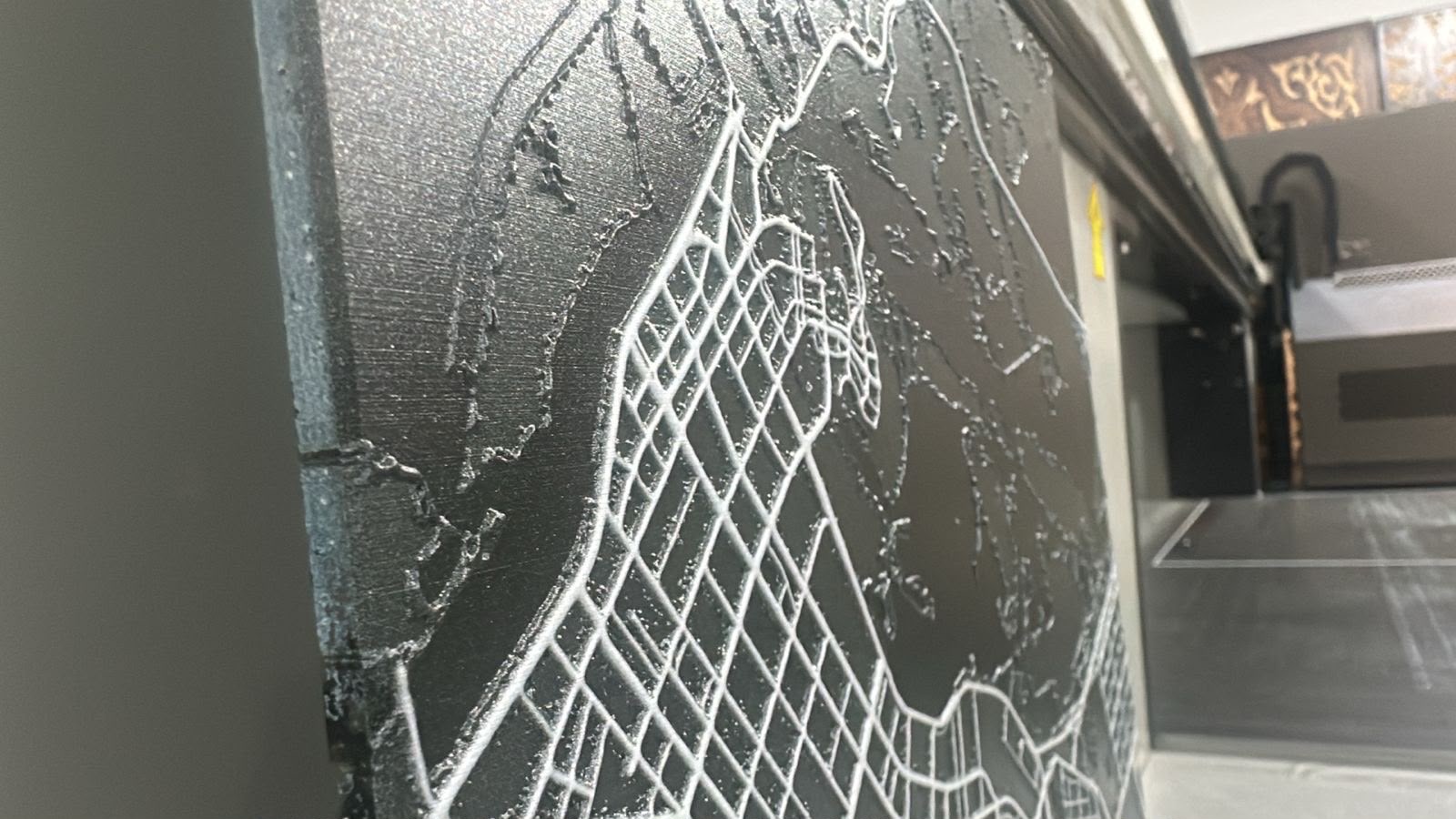

- Texture and varnish. Layered ink produces raised, tactile artwork; a clear coat gives gloss, matt or spot-gloss effects. This is also how Braille and tactile signage is produced
- Cold curing. LED-UV curing puts very little heat into the object, so heat-sensitive items — a fan with a sealed battery, a wax candle, a coated bottle — can be printed without deforming
How long does UV printing last?
Indoors, on a correctly prepared surface, a cured UV print holds up for years with no special care — museum panels, printed glass in restaurants and printed office walls are all long-life applications. There is no single honest number, because the duty the object does decides it: a fixed panel nothing touches and a piece handled daily are different cases. Outdoors in the Gulf the limit is not the ink film but the pigment: direct sun and heat fade colour over time, and how fast depends on the artwork, the inks and whether a protective coat was applied.
When a UV print fails early it is almost never because the ink was weak. It is because the surface was wrong — not cleaned, not primed, or a material that needed pre-treatment and did not get it. Adhesion is decided before the first drop lands. We cover what actually governs lifespan in how long UV printing lasts.
Where UV printing is the wrong answer
It is worth saying plainly, because the alternative is a disappointed client. UV printing is not the economical choice for very large quantities of a single simple design on a stable product — at tens of thousands of units with one logo in one colour, screen or pad printing is usually cheaper per piece once the tooling is paid off. It is not the right process for items that will be stretched, sharply flexed or repeatedly abraded at the printed area. It is not a substitute for dye or sublimation on polyester garments, where the ink needs to live inside the fibre rather than on it.
And it will not rescue a bad surface. If a wall is damp, if a panel is contaminated, if a plastic is one of the difficult ones and no pre-treatment is possible, the right answer is a different method or a different substrate — not a heavier ink layer. A comparison of the four processes side by side is in UV vs screen, pad and sublimation printing.
What to send for a UV printing quote
Five things settle almost any quote in one reply: what the object is, with a photo and its dimensions; what it is made of, including any coating or finish; the quantity; the artwork, with brand values for every colour that must match; and the date the goods have to be in hand. A studio that has printed the material before can price it from that, and will tell you if the surface needs a test before anyone commits.
The one step worth insisting on for an unfamiliar material is a printed sample on the actual item — not on a similar one. Surface finish decides adhesion, and two bottles that look identical can behave differently under the lamp.
Common questions
UV printing is not a finish applied to a product someone else made. It is a way of putting an image onto an object that was never printable before, and nearly everything that decides whether it works well happens before the printer is switched on — in the choice of material, the preparation of the surface, and the honesty of the person quoting about what that surface will hold.
