Museum & Exhibition Wall Graphics in Dubai & UAE
Interpretive panels, photography, timelines and gallery typography printed onto the wall itself, with no vinyl edge and no panel shadow. What the process reproduces well, what it does not, and what a specifier has to settle first.
An exhibition wall carries three things at once: an image, a piece of text, and the surface both sit on. Direct-to-wall printing puts the first two onto the third. A printer is brought to the finished wall, the artwork is printed onto the plaster itself, and there is no sheet, no adhesive, no panel and no shadow line around the edge of the graphic.
This page is about architectural wall graphics: interpretive panels, photographic murals, gallery typography, timelines and maps applied to the walls of a museum, gallery, visitor centre or heritage space. It is not about exhibition stands or shell-scheme booth panels, which are a different trade and a different product.
Sun Studio runs a wallPen E2 in Al Quoz, Dubai, and takes it to site across the UAE as part of its direct wall printing service in Dubai. What follows is what the method does well, where it stops, and what an exhibition designer or fit-out contractor has to settle before it is specified.

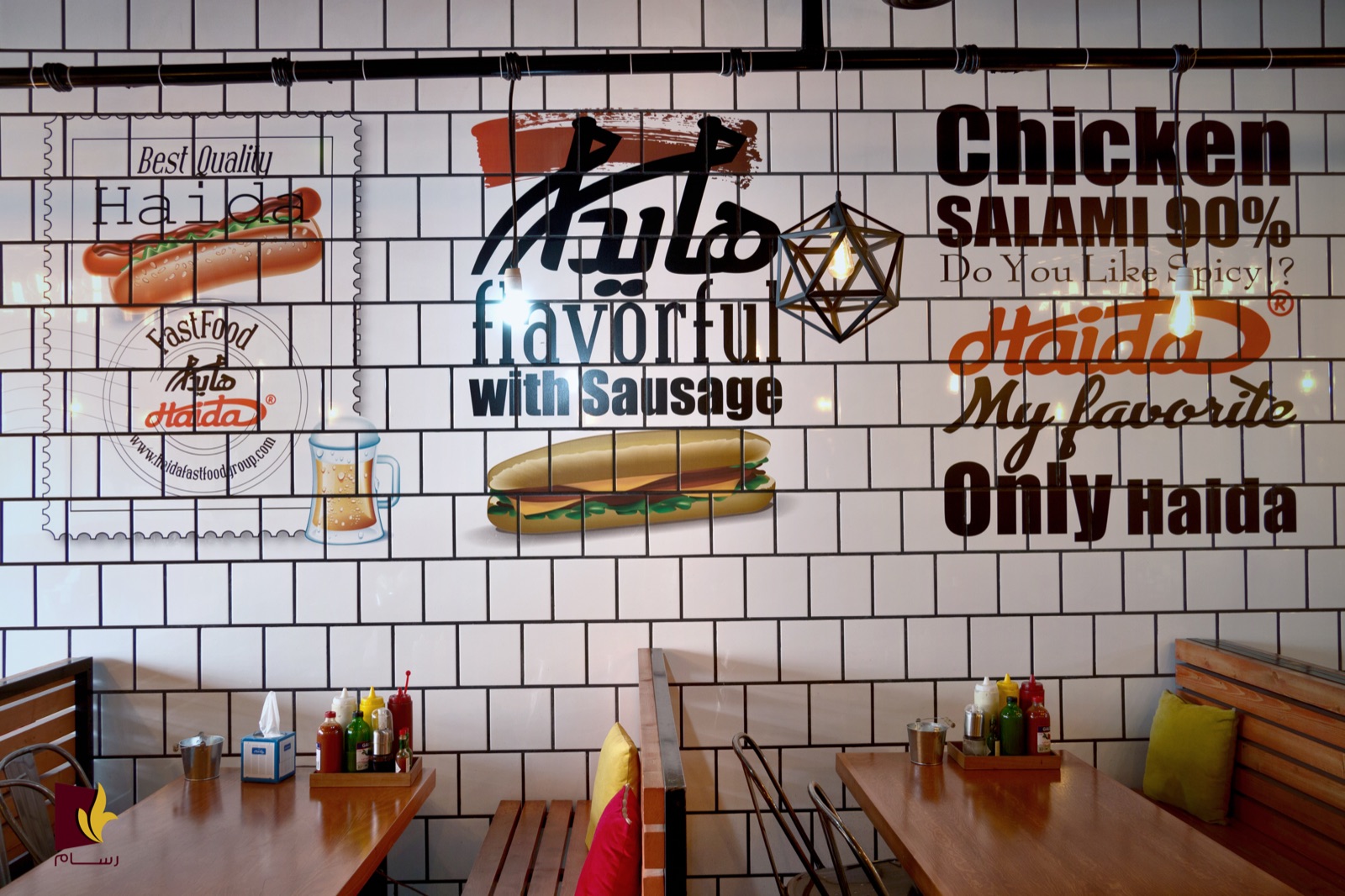

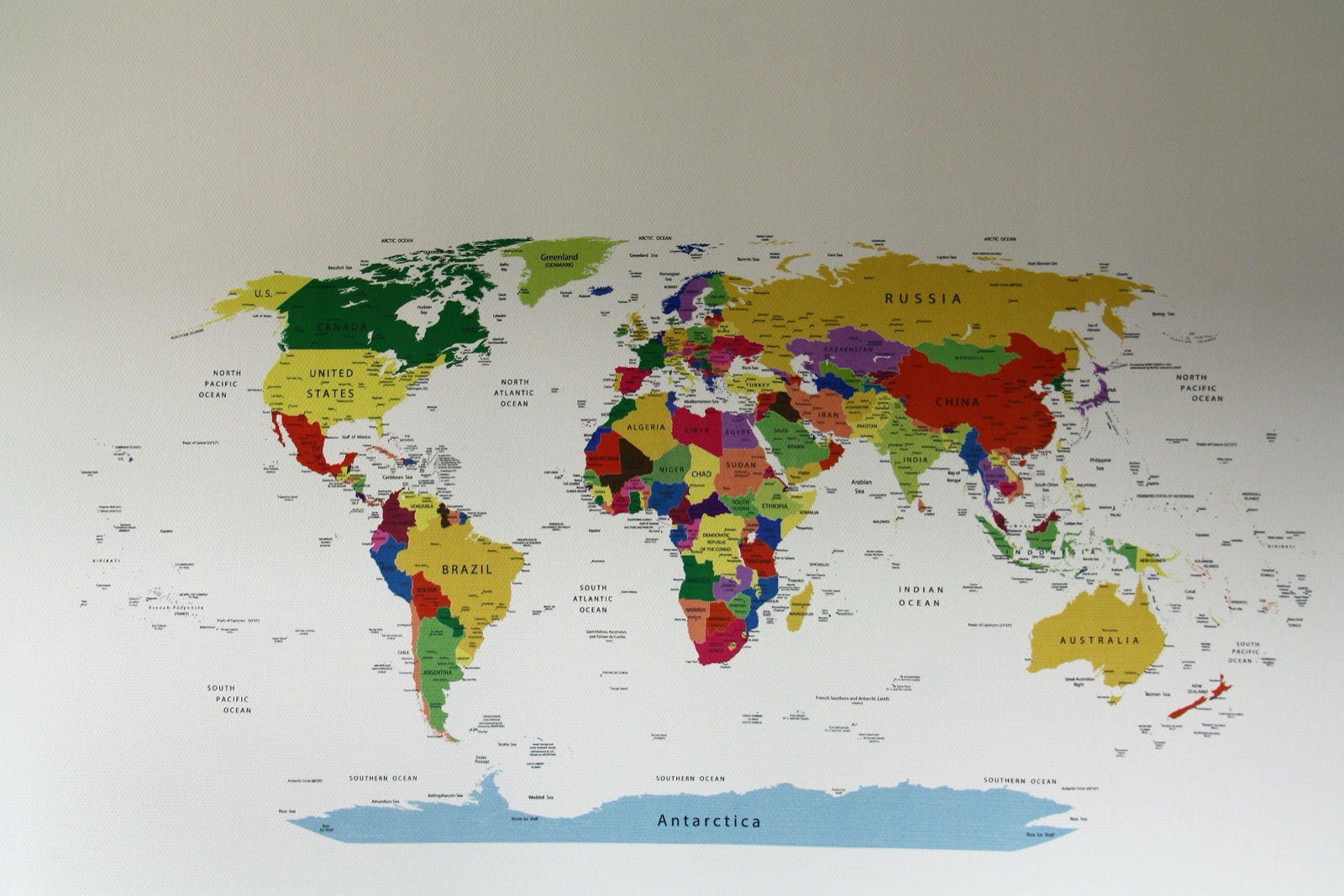

Sun Studio belongs to the same Dubai group as PRO TECHnology, which distributes wallPen equipment in the Middle East, so read our view of the machine with that in mind. Sun Studio has not yet printed a museum or gallery wall: the photographs in this article, including the one at the top, are wallPen reference installations.
Printed onto the wall, not applied to it
Almost every other way of getting a graphic onto a museum wall makes the graphic somewhere else first. Vinyl is printed on film and applied. Wallpaper is printed on a roll and pasted. A panel is printed, cut, framed and hung. All three arrive as an object that then has to be fixed to the wall.
Direct printing removes that object. The ink is jetted onto the wall and cured by UV LED lamps travelling with the head, so it is solid before it can run. What remains is the wall, printed. There is no perimeter for a fingernail to catch, no seam where two drops meet, and no bond line to fail in a humid month.
That is an advantage in some situations and irrelevant in others. Direct-to-wall printing is an alternative to vinyl, wallpaper and applied graphics for suitable museum and exhibition walls, not a replacement for them. Where a graphic has to be lifted off intact, moved to another venue, or applied to a surface that is not a wall, an applied medium is still the right answer. The comparison against wallpaper and vinyl sets out which failure modes belong to which method.
Photography, typography and fine detail
The question a curator asks first is whether the wall can hold the detail. The honest answer is that the machine is rarely the limit; the wall is.

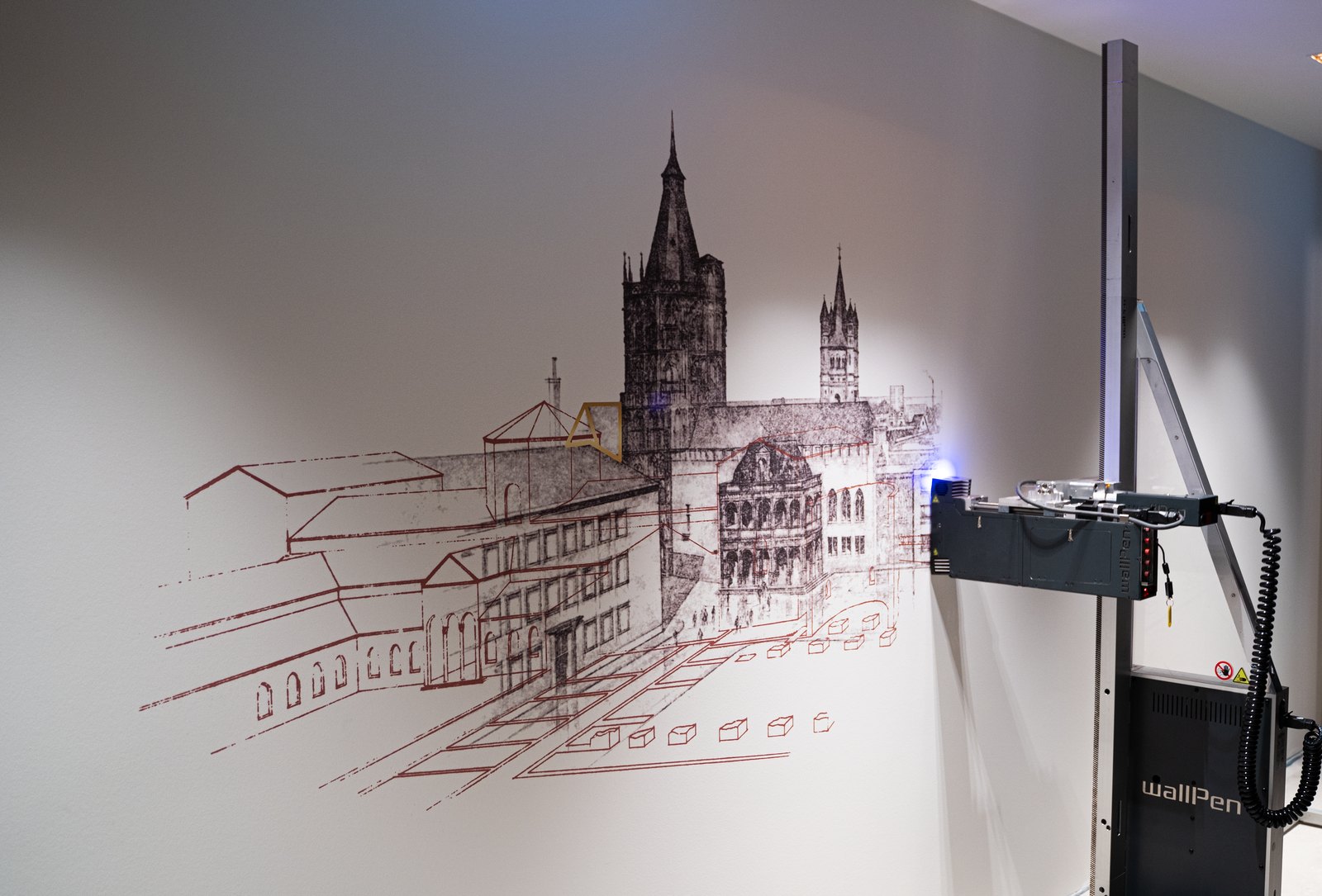

The wallPen E2 prints at up to 1200 dpi, and most artwork is rasterised and printed at around 600 x 720 dpi. In practice that reproduces continuous-tone photography, archival scans, fine reversed type, hairline rules and pencil or ink linework at normal exhibition viewing distances. Where detail softens, it is usually because the plaster has a texture that the image has to sit across, not because the file lacked resolution.

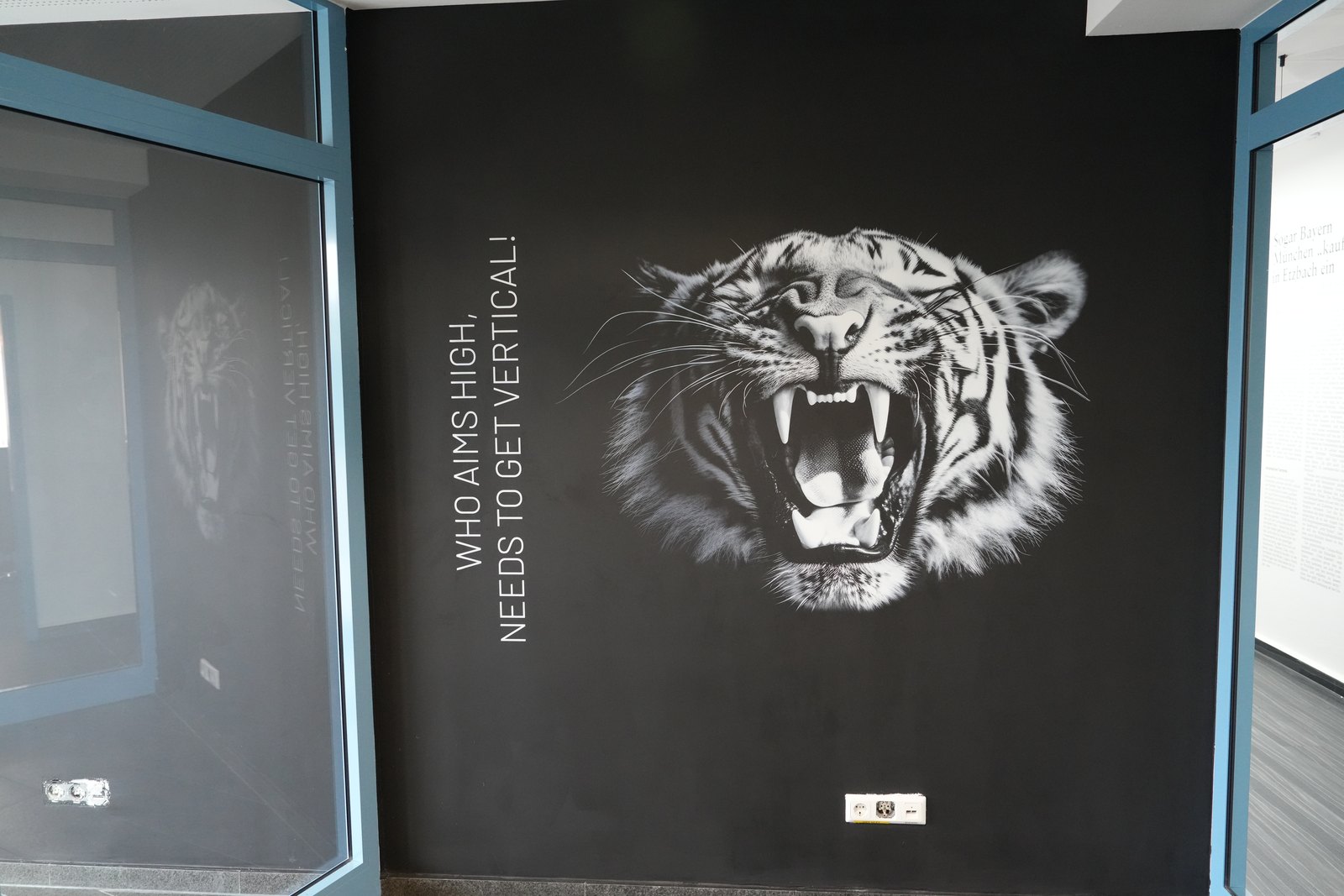

Two practical notes for anyone writing a specification. Reversed type, meaning light text on a dark printed ground, is built from the surrounding ink rather than from the paint underneath, so it holds its weight better than people expect. And a white ink layer is available where colour has to read opaque over a dark or coloured wall.
The mechanics of the machine itself, the preparation a wall needs and how long a wall takes are covered in how direct-to-wall printing works.
The wall decides the result
A printed wall records the surface it was printed on. That is the single most useful thing to know before specifying one.
A skimmed, filled and painted plaster wall in matt emulsion is the best case, and it is what most gallery walls already are. Fair-faced concrete, render, brick and coarse plaster all print, but their texture reads through the image, which suits bold artwork and punishes fine type and photographic skin tones. The manufacturer puts the workable limit at roughly 10 mm of surface contour depth; beyond that the surface is no longer a printing surface.
The machine compensates for the wall not being flat. A laser measures the distance to the surface continuously and the head adjusts as it travels, which handles irregularity up to about 10 cm. That is compensation for an imperfect wall, not permission to print on any wall with that much depth in it: the head still has to hold its working distance, and a surface that swings that far within a short run is a wall to fix, not to print.
- Best: skimmed plaster or plasterboard, matt emulsion, final coat cured, no active damp.
- Workable: fair-faced concrete, fine render, painted block, with the texture accepted as part of the finish.
- Prime first: glass, glazed tile and coated metal. We prime these because they give the ink no key of their own.
- Panel instead: anything with deep relief, active damp, chalking paint, or a surface that has to be demountable.
Curved walls print, within reason. The machine has a steerable axle and can follow a gentle plan curve, which is common in a gallery. A tight radius or a compound curve is a panel job, and so is a dome, which we handle as ceiling dome printing on panels. Send a photograph and a radius and it is settled in one reply, not on site.
Changing exhibitions: repaint, reprint
This is the property that matters most to a temporary exhibitions programme, and it is the one most often missed.
A printed wall is removed by painting it out. Two or three coats of the gallery’s own emulsion return the wall to an ordinary painted wall, and the next exhibition prints onto it. There is nothing to strip, no adhesive residue, no lifted corner, and no patch of fresh plaster where a fixing used to be. For a space that changes show every few months, the wall stops being consumable.
Compare that with the alternative most galleries live with: vinyl lifted with heat and solvent, a wall made good, then repainted anyway before the next graphic goes up. The paint step happens in both cases. Direct printing removes the removal.
Permanent exhibitions, and how long a print lasts
For a permanent gallery the question reverses: not how easily it comes off, but how long it stays right.
The manufacturer states colour stability indoors of up to 12 years, qualified by surface, location and mechanical stress, and that qualification is the important half of the sentence. A print in a low-light interpretive corridor and a print in a daylit atrium behind glass are not the same exposure. Outdoors the figure is around two years, extended to over five with a transparent UV protective coating, which is worth knowing for a courtyard or a shaded external wall but rules out unprotected facade work.
The cured film is water resistant and scratch resistant and wipes down like a painted wall, which is what a wall at visitor height in a busy museum actually needs. It is a coating on the wall, not a fused finish, and nothing here is described as permanent. For anything conservation-sensitive, ask for the ink documentation and put it in front of whoever is writing the conservation strategy.
How large, and at what viewing distance

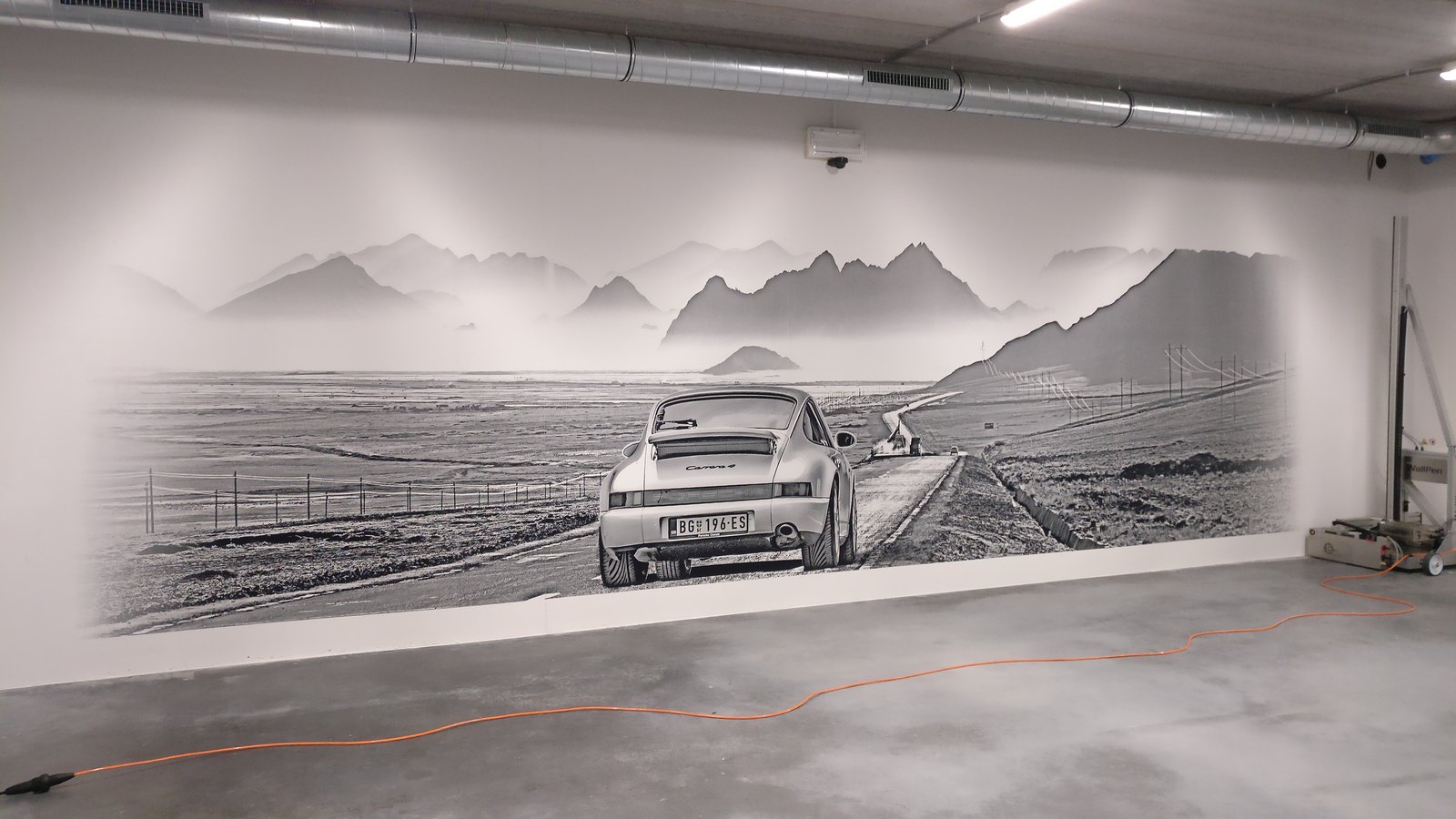

Height is the constraint, not width. The E2 prints up to 4 m high, which covers most gallery walls and stops short of a double-height atrium. One continuous image can run the length of a corridor, and can carry across an internal corner if it is set out for that from the start.
The manufacturer gives 2 to 3 m² an hour as the practical balance of speed and quality, which is the setting exhibition work needs. Dense, dark, photographic coverage takes longer than open artwork with white space, and a white underlayer adds a pass. For programming purposes that usually means a wall rather than a day.
Supply artwork at final size where you can, vector for type and linework, raster at a resolution that holds up at the closest point a visitor can stand. An interpretive panel read at 600 mm and a mural read across a 12 m room are different files, and building both to the stricter standard wastes nothing.
Working with designers, architects and fit-out contractors
Direct printing lands late in a fit-out programme, after the wet trades and the decorator, and that has consequences for sequencing.
The wall has to be finished before it can be printed, including the final coat, and it cannot be printed while the plaster or paint is still curing. The room does not have to be closed for long: the ink is cured as it is laid and there is no drying wait afterwards, so an occupied or part-handed-over space is workable. The machine needs clear floor space along the wall, a power supply, and access confirmed including building hours and any permits.
Before it is specified, settle these:
- Where the graphic sits relative to sockets, switches, sensors, skirtings, shadow gaps and the ceiling line.
- The paint system already on the wall, including anything easy-clean, anti-bacterial or silicone-modified.
- Whether a corner, a reveal or a curve is inside the printed area.
- The closest viewing position, and where any join in the artwork falls relative to it.
- The programme: which trades finish before the printer arrives, and who owns making good.
A test print on the actual wall, or on a sample board finished the same way, settles colour and surface behaviour before a schedule is committed. On a project with a fixed palette that step is not optional.
What Sun Studio has printed, and what it has not
Sun Studio has printed direct to wall across the UAE since bringing the wallPen E2 into the studio: gym and studio interiors in Abu Dhabi, a pilates studio, a majlis, retail and food interiors, and a single image carried across a corner of an occupied office in Business Bay. Two of those are written up as case studies: the seven walls printed for Body Abs Gym in Abu Dhabi and the Business Bay office corner, which is the office of PRO TECHnology, our parent group.
There is no completed museum or gallery wall in that record, and this page does not imply one. Our museum work so far is on panels and wayfinding: printed aluminium display panels for Sharjah Heritage Museum, bilingual wayfinding panels for Sharjah Al Hisn Museum and wayfinding and tactile signage for the Museum of the Future. The photographs in this article are wallPen reference installations that demonstrate what the machine does with photography, fine type and line artwork, and the captions say so. What Sun Studio brings to a cultural project is the machine, the operators who run it weekly, and the pre-treatment and testing discipline described above.
The equipment is supported regionally by PRO TECHnology, the authorised distributor for the wallPen and part of the same group as Sun Studio. If you are specifying for an institution and want to see output before committing, the studio in Al Quoz prints samples on your own substrate. For budgeting, see our guide to wall printing prices in Dubai per square metre.
